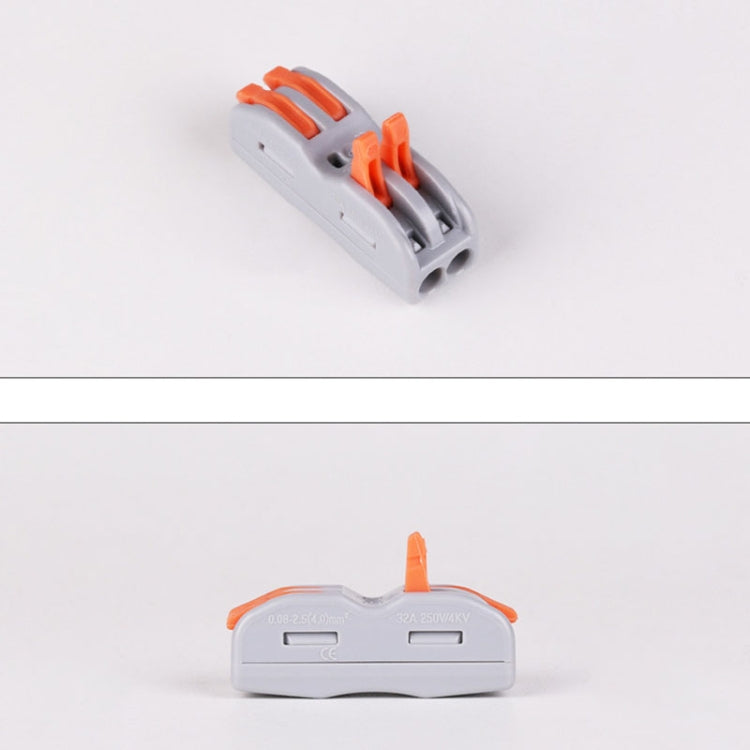

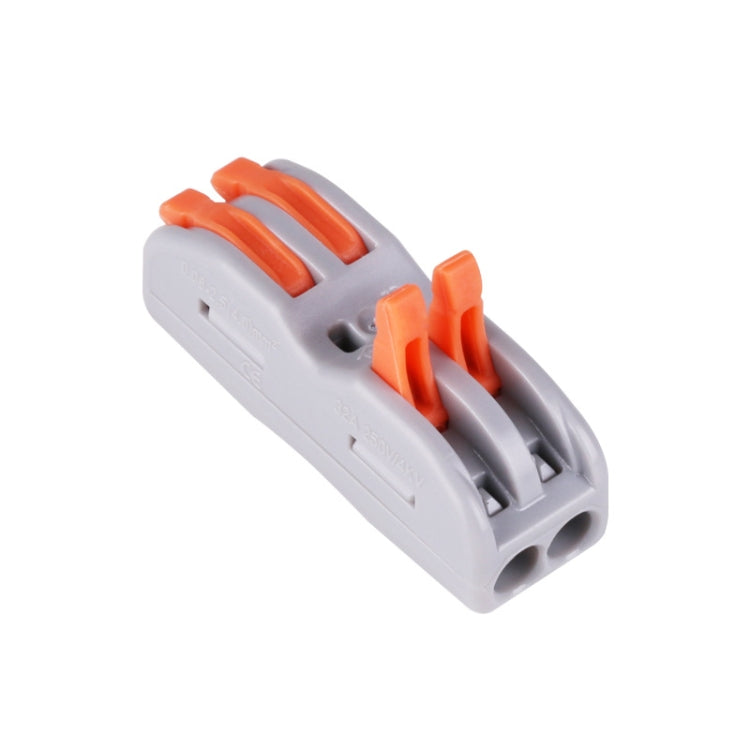

1. Type: terminal
2. Size: 38.2x12.5x13.2mm
3. Rated voltage: 250V
4. Rated current: 32A
5. Rated power: 8KW
6. Applicable wire: 0.08-4 square millimeter soft and hard wire
7. Shell material: PA66

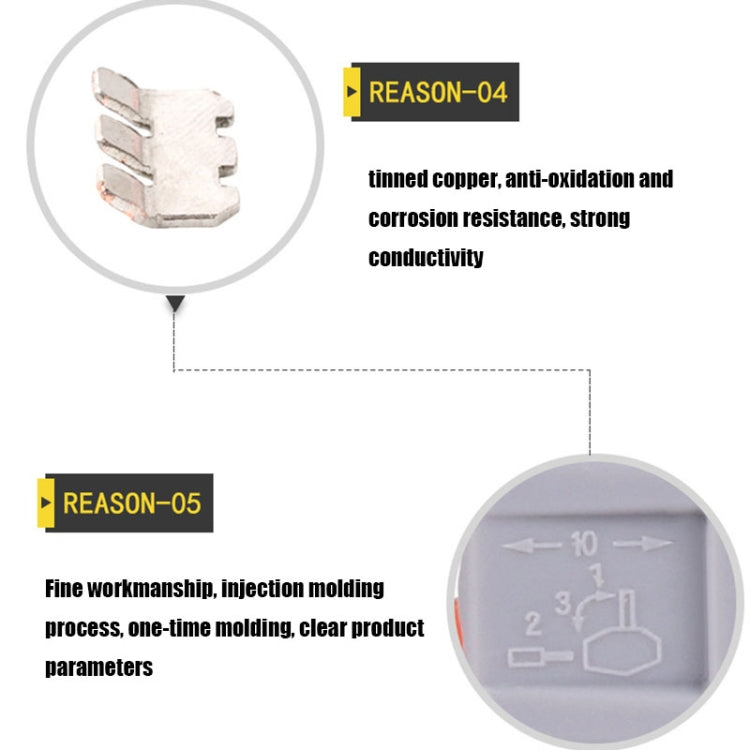

8. The material of the guide bar: tinned copper, anti-oxidation and corrosion resistance, strong conductivity

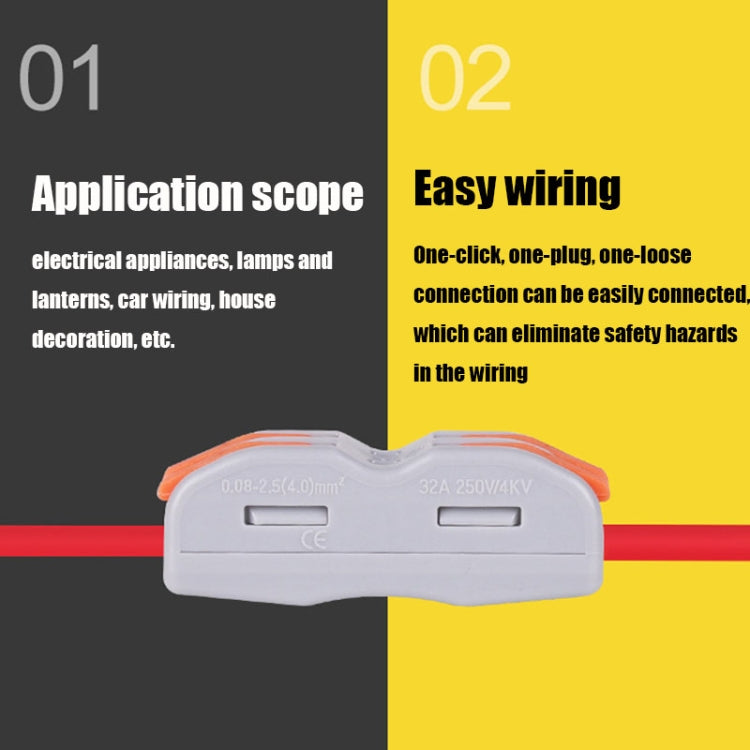

9. Application scope: electrical appliances, lamps and lanterns, car wiring, house decoration, etc.

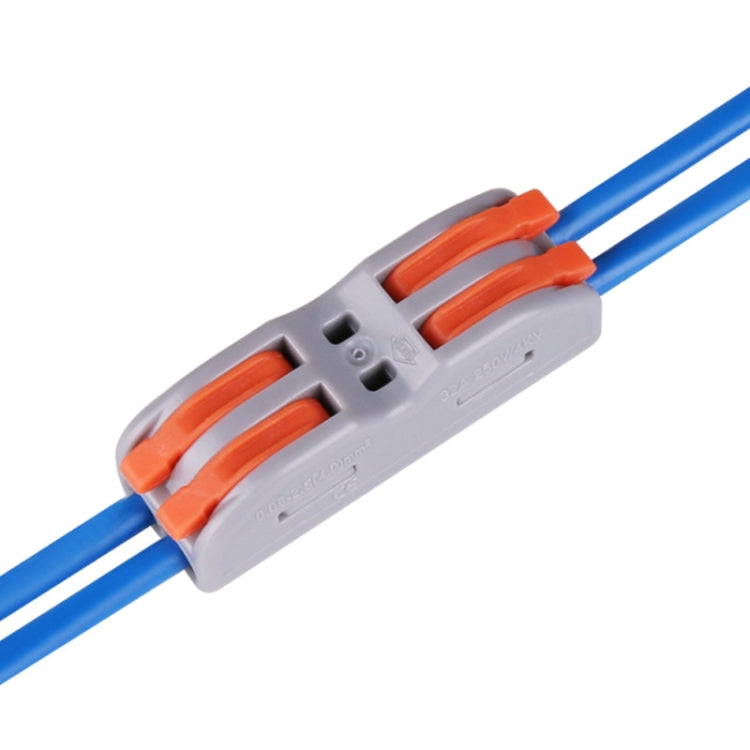

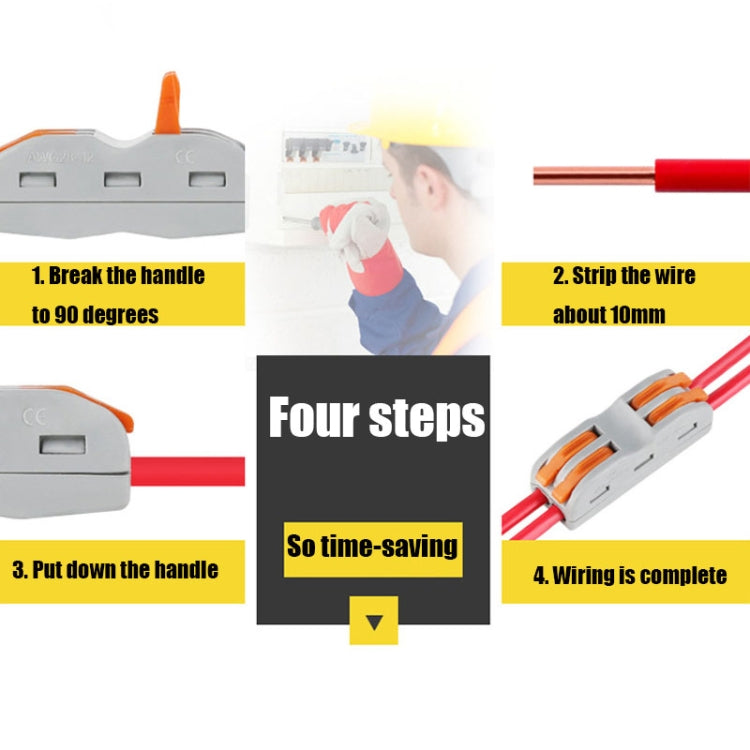

10. One-piece design, two in and two out, simple and convenient wiring method
11. Insulating flame retardant material, high temperature resistance, melting point 260 degrees Celsius
12. Fine workmanship, injection molding process, one-time molding, clear product parameters

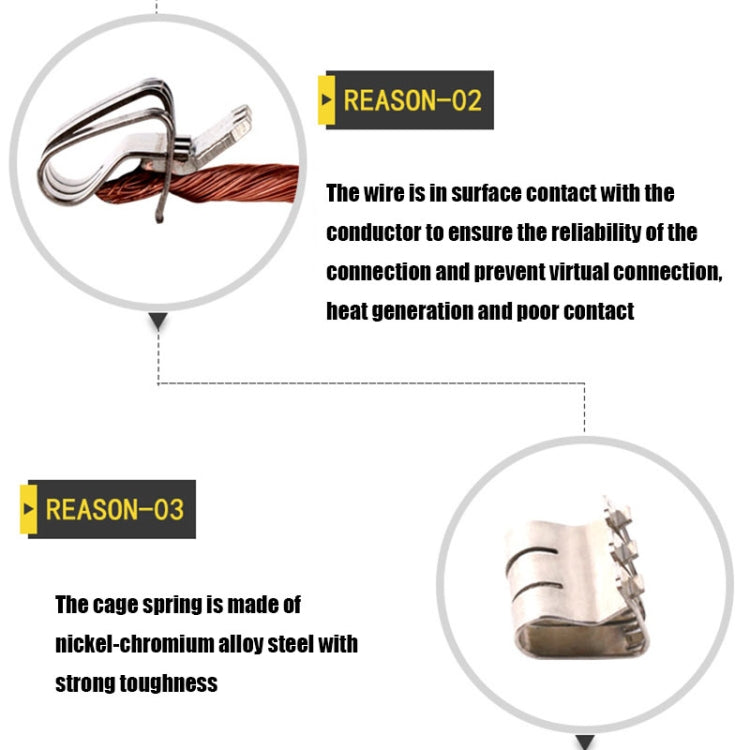

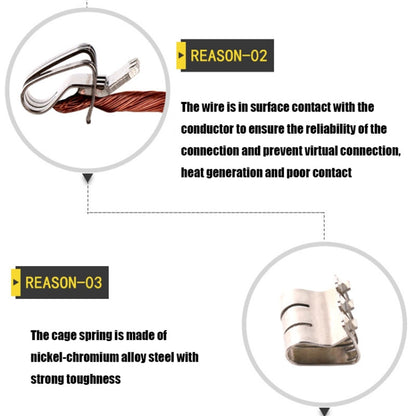

13. The cage spring is made of nickel-chromium alloy steel with strong toughness
14. The wire is in surface contact with the conductor to ensure the reliability of the connection and prevent virtual connection, heat generation and poor contact
Specification:
| Package Weight |
| One Package Weight |
0.10kgs / 0.23lb |
| One Package Size |
8cm * 15cm * 15cm / 3.15inch * 5.91inch * 5.91inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch |
| Loading Container |
20GP: 177 cartons * 288 pcs = 50976 pcs
40HQ: 412 cartons * 288 pcs = 118656 pcs
|
|
